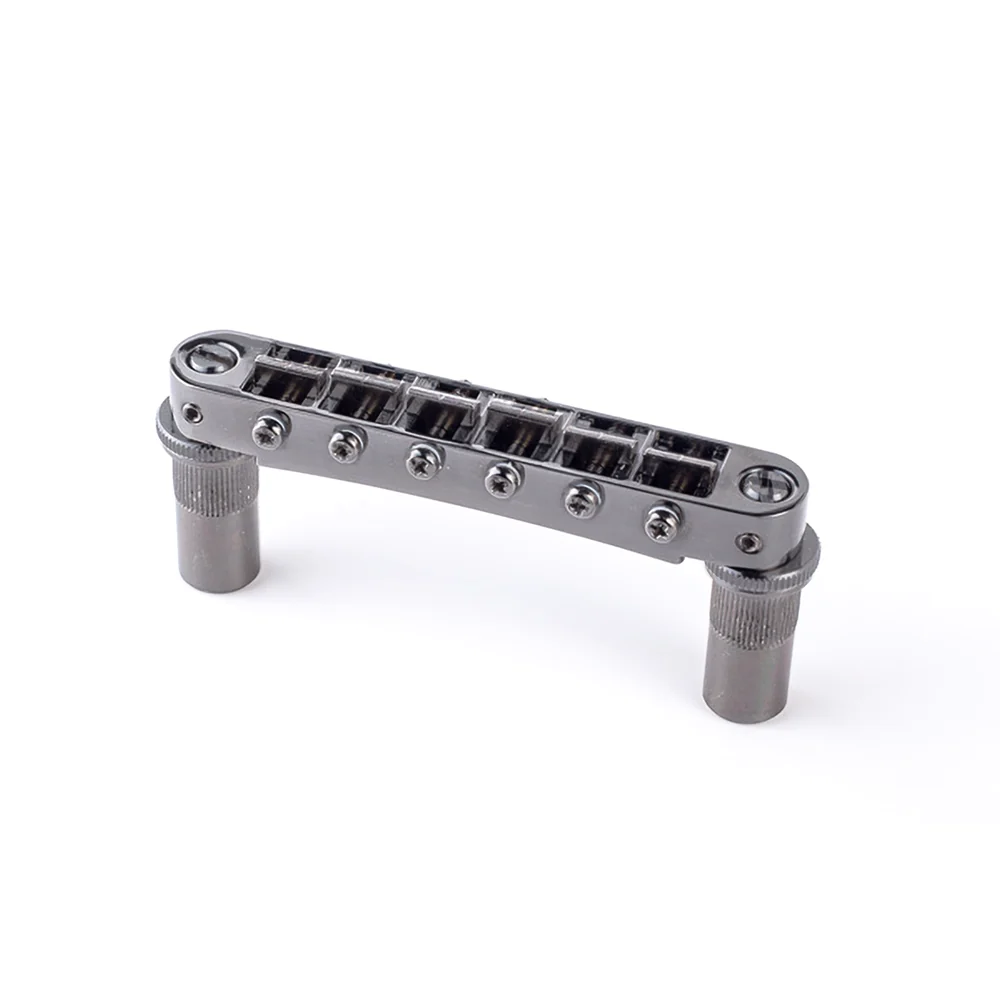

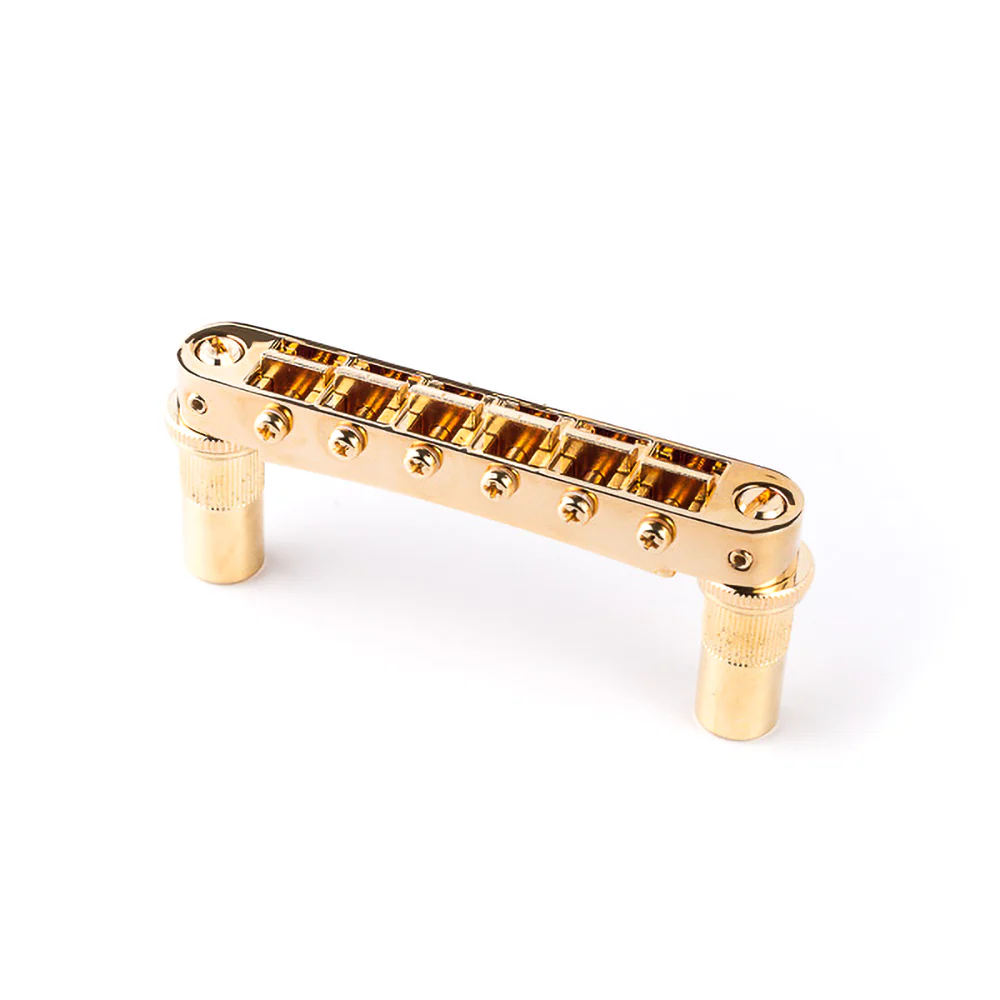

TonePros T3BT Metric Nashville Tuneomatic Bridge
This is a TonePros Nashville-style tuneomatic bridge for direct retrofit on most Eastern-made guitars without modification.
The TonePros T3BT has many improvements over standard Nashville bridges: including intonation adjustment on the pickup side, phillips head saddle adjustment screws, pre-notched saddles for quick installation, and post-locking screws.
Specs:
- Thread: 8mm x 1.25 Metric
- Post to Post Spacing: 74mm
- Saddle Notch: Pre-Notched Saddles
- Saddle Material: Zamak
- Bridge Material: Zamak
- Post/Thumbwheel Material: Brass
- Radius: 12 inch
- String Spread: Approx. 10.4mm
- Post Top Width: .23 Inches/ 6mm (Metric Flathead Post Top)
Ā
NB. This bridge is engineered with permanent saddles that require no modification. Removal or modification will result in damage to the bridge. If interested in a comparable model with removable saddles please enquire with our team.
